Design a URL Shortener

A URL shortener is a deceptively simple service: take a long URL, return a short one, and redirect the short one back to the original. At a surface level it looks like a two-row database with a lookup. But the design challenge compounds quickly at scale: you must generate short IDs that are guaranteed unique across a distributed fleet without a global lock, keep redirect latency near zero for every link click everywhere in the world, handle a read:write ratio of 100:1 without a read bottleneck, support custom aliases without collision with the auto-generated namespace, purge expired links without impacting hot-path performance, and record click analytics while keeping the redirect path as fast as a CDN edge response. Each of these is a non-trivial system design decision, and their interactions create subtle correctness and performance traps.

Step 1 — Clarify Requirements

Before designing anything, scope the problem explicitly. URL shortener is a common interview prompt because it seems trivial but reveals depth quickly. Ask the interviewer about these dimensions:

Functional requirements

• Generate a short URL from a long URL input.
• Redirect a short URL back to the original long URL.
• Support custom aliases (user-supplied short codes like tiny.url/my-brand).
• Set an expiration date/TTL on links; expired links return 404.
• Track click analytics: total clicks, unique visitors, referrer, country, device type.
• User accounts for managing their own links (optional, but common in product interview variants).

Non-functional requirements

• Very low redirect latency — redirects happen on every link click across the internet; target <50 ms p99 globally.
• Very high availability — a down service breaks every shortened link in existence; target 99.99%.
• Uniqueness guarantee — two different long URLs must never map to the same short code; one short code must always resolve to exactly one long URL.
• Scalability — handles 10M DAU with a 10:1 read-to-write ratio; scales to 100:1 at large scale.

Step 2 — Capacity Estimation

Back-of-the-envelope sizing anchors storage and infrastructure decisions. Assume a mid-size deployment with 10M DAU.

Traffic

• Write rate: assume each DAU creates ~0.1 short URLs per day → 10M × 0.1 = 1M writes/day ≈ 12 writes/sec average; peak ~2–3× → ~30 writes/sec.
• Read rate: assume each URL is clicked ~10 times/day on average → 1M × 10 = 10M redirects/day ≈ 115 reads/sec average; peak 5–10× → ~1,000 reads/sec.
• Read:write ratio ≈ 10:1 at this scale; at large viral link scale (a popular link being clicked millions of times) it easily hits 100:1 or higher.

Storage

• Each URL record: ~100 bytes (slug 6 B, long URL ~100 B avg, created_at 8 B, expires_at 8 B, user_id 8 B) ≈ ~130 bytes/record.
• 1M new URLs/day × 365 days × 130 bytes ≈ ~47 GB/year for URL records — trivially fits in a single SQL database, let alone a sharded one.
• Analytics events: if we log every click (115 reads/sec × 86,400 s × ~200 bytes) ≈ ~2 GB/day of click events; these go to a time-series store or data warehouse, not the hot URL database.

Slug namespace sizing

• Base-62 character set: [0-9, a-z, A-Z] = 62 characters.
• 6-character slug: 62⁶ = 56,800,235,584 unique codes — over 56 billion.
• At 1M new URLs/day, this namespace lasts over 155,000 years. Even at 1B URLs/day it lasts ~56 years. 6 characters is the canonical answer.
• 7 characters gives 62⁷ = 3.5 trillion — use if you genuinely expect billion-per-day scale.

Step 3 — API Design

Clean, minimal REST surface. The entire service is essentially two endpoints plus a management layer:

# Write: create a short URL
POST /api/shorten
     Authorization: Bearer <token>
     { "long_url": "https://example.com/very/long/path?q=1",
       "custom_alias": "my-brand",   // optional
       "expires_at": "2025-12-31" }  // optional
     → 201 { "short_url": "https://tiny.url/aB3kPq",
             "slug": "aB3kPq", "expires_at": "2025-12-31" }

# Read: redirect
GET /{slug}
     → 302 Location: https://example.com/very/long/path?q=1
     → 404 if slug not found or expired

# Analytics: click stats for a link
GET /api/links/{slug}/analytics
     Authorization: Bearer <token>  // must own the link
     → { "total_clicks": 14827, "unique_visitors": 9301,
         "clicks_by_country": {...}, "clicks_by_day": [...] }

# Management: delete a link
DELETE /api/links/{slug}
       Authorization: Bearer <token>

The POST /api/shorten endpoint is idempotent for the same (long_url, custom_alias) pair — submitting the same request twice returns the existing slug rather than creating a duplicate. Rate-limit this endpoint per user token: free tier might allow 10 creates/min, paid tier 100/min. The GET /{slug} redirect endpoint is on the hot path; it must be as fast as possible and is never rate-limited for readers (only the write side needs protection).

Step 4 — Short ID Generation: Hashing vs. ID Generation

The core question is how to generate the 6-character slug. There are four main approaches, each with distinct tradeoffs:

Why hashing is problematic

Hashing the long URL and taking the first 6 characters seems elegant — same URL always produces the same slug (deterministic), no coordination needed. The problem is the birthday paradox: in a 56-billion-slot space, after inserting roughly √(2 × 56B) ≈ 334,000 URLs, the probability of a collision exceeds 50%. At 1M URLs/day, you hit this in under a day. Every collision requires detection (DB lookup or Bloom filter check) and a retry with a salt — now you have a retry loop on the write path with indeterminate latency.

Snowflake ID generation

Twitter's Snowflake format generates 64-bit IDs from three components packed into a single integer: a 41-bit millisecond timestamp (giving ~69 years of headroom from epoch), a 10-bit machine ID (supporting 1,024 unique generator nodes), and a 12-bit sequence counter (allowing 4,096 IDs per millisecond per machine). Converting this 64-bit integer to base-62 gives at most 11 characters — for a 6-char slug, take the lower 36 bits (base-62 encoding of numbers up to 62⁶ ≈ 56B requires ~36 bits).

import time

EPOCH = 1700000000000  # custom epoch ms
MACHINE_ID = 1          # assigned at deploy time (0–1023)
BASE62 = "0123456789abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ"
_seq = 0

def generate_snowflake():
    global _seq
    ts = int(time.time() * 1000) - EPOCH
    _seq = (_seq + 1) & 0xFFF   # 12-bit rollover
    return (ts << 22) | (MACHINE_ID << 12) | _seq

def to_base62(n: int, length=6) -> str:
    chars = []
    while n > 0:
        chars.append(BASE62[n % 62])
        n //= 62
    return "".join(reversed(chars)).zfill(length)[-length:]

def new_slug() -> str:
    return to_base62(generate_snowflake())

Range assignment (counter-based)

An alternative to Snowflake: a central coordinator (e.g., a ZooKeeper node or a dedicated counter service backed by a SQL AUTO_INCREMENT) assigns numeric ranges to worker nodes. Worker 1 gets 0–999,999; worker 2 gets 1,000,000–1,999,999, etc. Each worker converts its next counter value to base-62 and uses it as the slug. No coordination is needed within a range — the worker increments a local counter. When a range is exhausted, the worker requests a new range from the coordinator. This approach is simpler than Snowflake and collision-free but creates a single-point coordinator that must be highly available.

Step 5 — Bloom Filter for Collision Detection

Even with collision-free ID generation, you still need collision detection for the hash-based approach and for custom aliases (which are user-supplied strings that could collide with auto-generated slugs or with each other). The canonical tool is a Redis Bloom filter.

A Bloom filter is a probabilistic data structure that answers "is this element definitely not in the set?" or "is this element possibly in the set?". It never produces false negatives but may produce false positives. The operational rule:

• Bloom filter says NO (bit not set) → slug is definitely new — safe to write, no DB lookup needed.
• Bloom filter says YES (bit set) → slug might exist — fall back to a DB lookup to confirm. If the DB says it exists, retry with a new slug or salt.

This keeps the write fast path — the overwhelmingly common case (new slug) — an O(1) in-memory Redis check rather than a DB round-trip. The false-positive rate (controlled by the filter's bit array size and hash count) is typically configured to 1% or lower, meaning only 1 in 100 writes incurs an unnecessary DB lookup.

Step 6 — Data Model

The URL store is simple but the schema details matter for correctness and query performance:

CREATE TABLE urls (
  slug          VARCHAR(8)  PRIMARY KEY,    -- short code (6–8 chars)
  long_url      TEXT        NOT NULL,
  user_id       BIGINT,                     -- NULL if anonymous
  is_custom     BOOLEAN     DEFAULT FALSE, -- user-supplied alias
  created_at    TIMESTAMP   NOT NULL,
  expires_at    TIMESTAMP,                  -- NULL = never expires
  click_count   BIGINT      DEFAULT 0      -- approximate, incremented async
);

CREATE INDEX idx_user_id ON urls(user_id);   -- list user's links
CREATE INDEX idx_expires ON urls(expires_at) -- purge expired rows
  WHERE expires_at IS NOT NULL;

-- Analytics events (high-volume, written to Kafka → OLAP store)
-- NOT stored in the hot SQL DB
-- Schema of Kafka message:
-- { slug, timestamp_ms, ip, user_agent, referrer, country, device_type }

Key schema decisions: the slug is the primary key — every redirect is a primary-key lookup, which is O(log n) on a B-tree index and extremely fast. The expires_at partial index (filtered to non-NULL rows) keeps the purge scan cheap. The click_count column is an approximate counter — it is incremented asynchronously by the analytics consumer, not on the redirect hot path, so it may lag by minutes but never blocks a redirect.

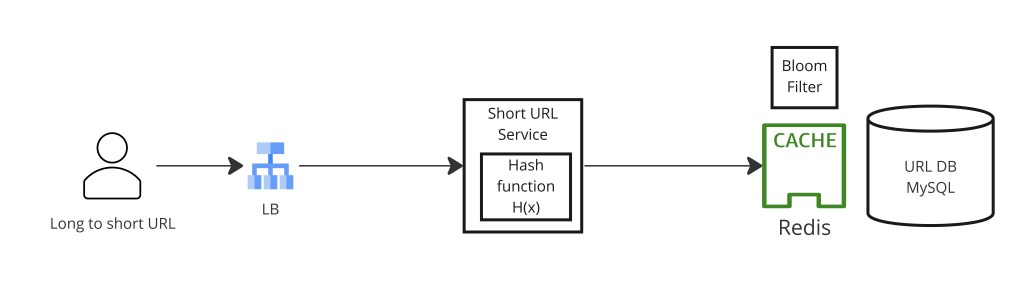

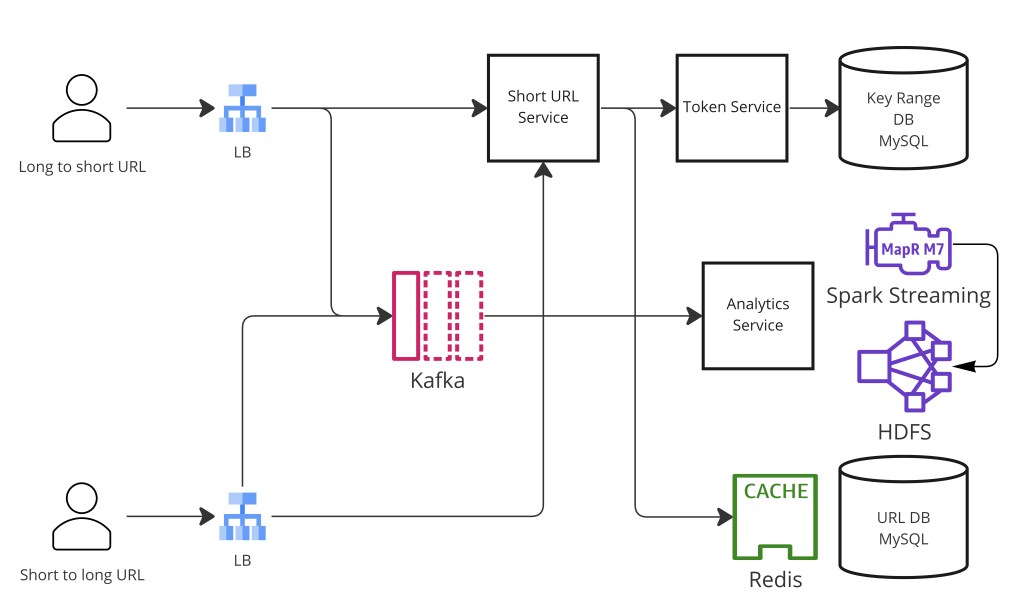

Step 7 — Core Architecture and Read/Write Paths

-- Write path (shorten a URL)
POST /api/shorten { long_url, custom_alias?, expires_at? }
  → Rate limiter (token bucket per user_id or IP)
  → If custom_alias provided:
      check alias not already taken (DB lookup)
      slug = custom_alias
    Else:
      slug = to_base62(snowflake_id())
  → Check Redis Bloom filter (for hash approach only)
      negative → safe to write
      positive  → DB lookup to confirm; retry on collision
  → Write { slug, long_url, user_id, expires_at } to primary DB
  → Add slug to Bloom filter (if using)
  → Add slug → long_url to Redis cache (TTL = min(expires_at, 24h))
  → Return { short_url: "https://tiny.url/{slug}" }

-- Read path (redirect)
GET /{slug}
  → Check Redis cache
      hit  → check expires_at → 302/404 redirect
      miss → DB lookup by PRIMARY KEY
               found  → cache → 302 redirect
               not found → 404
  → Fire-and-forget: publish click event to Kafka
      { slug, ts, ip, user_agent, referrer, country }

Redis caching in depth

With a 100:1 read-to-write ratio, caching is the single highest-leverage optimization. The cache pattern is look-aside with write-through: on a write, populate the cache immediately so the first redirect is already a cache hit; on a read miss, pull from the DB and populate. Key caching decisions:

• TTL — set to min(link expires_at, 24 hours). A link expiring tomorrow should not be cached past its expiry. A non-expiring link gets 24 h TTL with eager refresh to avoid stampede on popular links.
• Hot links — a viral link shared by a celebrity can receive millions of clicks in minutes, saturating one Redis shard. Mitigate with local in-process cache (LRU cache in the redirect service, 1 s TTL) in front of Redis, or by replicating hot keys across multiple Redis nodes.
• Cache stampede — when a popular link's cache entry expires, thousands of redirect requests simultaneously miss and hammer the DB. Use a single-flight mutex: only one request rebuilds the cache entry; others wait for it. Or use probabilistic early expiry (refresh before the TTL hits zero based on the link's click velocity).
• Cache invalidation — when a link is deleted (via DELETE /api/links/{slug}), immediately evict it from cache. Never serve a deleted link from stale cache.

Step 8 — Redirect: 301 vs. 302

The HTTP redirect response code is a product decision with significant system-design implications:

If click analytics are a product requirement, you must use 302 — a 301 means the shortener never sees repeat clicks from the same browser after the first. If analytics are not required and you want maximum performance at minimum cost, 301 + CDN caching is the right choice: CDN edge nodes cache the 301 and serve repeat redirects at edge latency without touching your origin servers.

Step 9 — Custom Aliases

Custom aliases (tiny.url/my-brand) are user-supplied strings that must not collide with either auto-generated slugs or with other users' custom aliases. The namespace management rules:

• Validation — enforce a character allow-list (a-z, A-Z, 0-9, hyphen, underscore), minimum length (3 chars), maximum length (50 chars). Reject reserved words (api, admin, health, etc.).
• Uniqueness check — before accepting a custom alias, check the urls table: SELECT 1 FROM urls WHERE slug = :alias. If it exists and is owned by another user, reject with 409 Conflict. If it exists and is owned by the same user (idempotent re-submit), return the existing record.
• Namespace isolation — store both custom aliases and auto-generated slugs in the same urls table, differentiated by the is_custom flag. The primary key check prevents collisions between the two namespaces automatically.
• Custom alias limits — free accounts might allow 5 custom aliases; paid accounts unlimited. Enforced at the API layer, not the DB.

Step 10 — Click Analytics Pipeline

Click analytics must not add latency to the redirect hot path. The solution is a fire-and-forget async pipeline:

1. On every redirect, the redirect service publishes a click event to Kafka asynchronously (non-blocking). The redirect itself returns immediately.
2. Kafka consumers (analytics workers) consume the event stream and write to a time-series store (ClickHouse, BigQuery, or Redshift) optimized for aggregation queries.
3. A separate aggregation job (Spark batch or Flink streaming) pre-computes per-link rollups: total clicks, unique IPs, clicks by country/device/referrer, clicks by hour/day.
4. The analytics API (GET /api/links/{slug}/analytics) reads from the pre-computed rollup store, not from raw events — O(1) lookup rather than a full scan of billions of click records.

Redirect service
  └── fire-and-forget → Kafka topic: "click-events"
        { "slug": "aB3kPq", "ts": 1716556800000, "ip": "1.2.3.4",
          "country": "US", "device": "mobile", "referrer": "twitter.com" }

Analytics consumer (Flink streaming)
  └── reads Kafka → counts per (slug, hour, country, device)
  └── writes rollups to ClickHouse:
        -- clicks_hourly(slug, hour, country, device, click_count)

Analytics API
  └── SELECT SUM(click_count) FROM clicks_hourly WHERE slug = 'aB3kPq'
      → returns in <10 ms (indexed rollup table)

Step 11 — URL Expiration and Purging

Expired URLs must be cleaned up to reclaim storage and return correct 404 responses. Three strategies, each with different tradeoffs:

The recommended approach combines all three: Redis TTL handles the cache layer correctly for most traffic; lazy expiry check in the redirect handler catches DB hits on expired-but-cached-elsewhere links; nightly scan keeps the DB table clean and the partial index small. The lazy delete should be done asynchronously (e.g., enqueue to a deletion queue) to keep the redirect response fast.

Step 12 — Scaling and Fault Tolerance

At high scale, the URL shortener must remain available and fast despite hardware failures, traffic spikes, and regional outages.

Read scaling

The redirect service is stateless — it reads from Redis and occasionally from the DB. Scale horizontally behind a load balancer. With a hot Redis cache absorbing 95%+ of reads, the DB is under minimal load. Add read replicas for the DB to handle the remaining cache misses. Deploy the redirect service in multiple regions with a CDN or GeoDNS routing users to their nearest instance.

Write scaling

At ~30 writes/sec, a single SQL primary easily handles URL creation. If write scale becomes a concern (say, 10,000 writes/sec for a platform that also offers programmatic link creation via API), shard the DB by slug prefix: slugs starting with 0-9 go to shard A, a-m to shard B, n-z to shard C. Since each redirect is a primary-key lookup on the slug, routing to the correct shard is a simple character map — no cross-shard joins needed.

Multi-region consistency

A globally distributed URL shortener must handle the case where a link created in US-East is immediately clicked by a user in Asia-Pacific. Options:

• Global single-region primary + regional read replicas — writes go to US-East; replicas in EU and APAC catch up within seconds. Redirect reads hit the local replica. A newly created link may take 1–2 s to appear in APAC — usually acceptable.
• Multi-primary with conflict detection — each region accepts writes with a Snowflake ID (machine ID encodes region). Since Snowflake IDs are globally unique by construction, no conflicts are possible. Replication propagates records across regions asynchronously.

Fault tolerance

• Redis failure — if the cache cluster is down, all redirects fall through to the DB. Design the DB capacity to handle 100% of redirect traffic for the duration of a Redis outage (minutes to hours with automatic recovery). Redis Cluster with replica shards reduces the blast radius.
• DB failure — automatic failover to a replica (e.g., via Amazon RDS Multi-AZ or Patroni for PostgreSQL). Brief window of read-only mode during failover is acceptable; link creation queued and retried.
• Kafka failure — click events are lost for the duration. Analytics accuracy degrades but redirects are unaffected (fire-and-forget means the redirect does not wait for Kafka). Kafka itself runs with replication factor ≥ 3.

Step 13 — Rate Limiting and Security

The write endpoint must be protected with a rate limiter to prevent DDoS attacks that generate millions of slugs, exhausting both storage and the slug namespace. Security layers:

• Per-user token bucket — authenticated users get a rate limit (e.g., 10 creates/min free tier, 100/min paid). Implemented in Redis with a sliding window counter: INCR rate:user:{user_id}:{minute} + EXPIRE.
• Per-IP rate limit — unauthenticated requests (anonymous shortening) are limited by IP to prevent unauthenticated abuse. More permissive than per-user but necessary as a backstop.
• URL validation and malware scanning — validate that the long URL is a valid URL (regex + DNS resolution check). Integrate with a malware/phishing URL database (Google Safe Browsing API) to reject known malicious links before creating a slug that would then propagate the phishing link.
• Spam link detection — rate-limit the same long URL from the same user (creating 1,000 slugs all pointing to the same phishing page is a common abuse pattern).
• The read endpoint is not rate-limited for anonymous users — redirects are cheap and caching absorbs most load. Rate-limit only if a specific IP is making an obviously automated volume of redirect calls (bot detection layer).

Step 14 — Key Tradeoffs
